Description

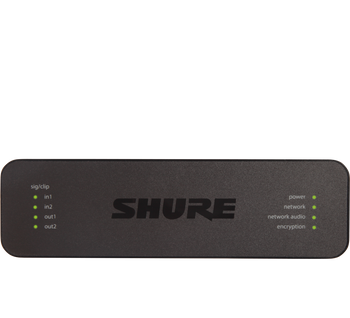

Converts up to four line / mic analog signals onto a Dante network for easy audio routing and browser-based control.
Features
- Single Ethernet port carries Dante audio, power (PoE – class 0)
- LEDs indicate device status and audio signal
- Control strings for third-party preset controllers including Crestron® and AMX®
- 4 Band C/S PEQ on every channel
- Provides channel summing to combine input signals and send them over a single Dante™ channel
- Browser-based software control for all device parameters, per input channel:
- Preamp gain
- Mute control
- Digital gain
- Polarity control
- Phantom power
- 1/3 Rack unit wide
- Chassis ground screw (BLOCK version only) provides common chassis ground for multiple inputs
- Available in block connector (audio + logic) and standard XLR variations
Specifications
Inputs
- ANI4IN-XLR (4) XLR connector
- ANI4IN-BLOCK (4) 6-pin block connector
- Phantom Power, Selectable per channel: +48 V
- Logic Connections (Block connectors only)
Sent as Ethernet command strings - LED, Switch
- Polarity: Non-inverting, any input to any output
- Output: (1) RJ45
- Power Requirements: Power over Ethernet (PoE), Class 0
- Power Consumption: 10W, maximum
- Weight: 672 g (1.5 lbs)
- Dimensions (H x W x D): 4 x 14 x 12.8 cm (1.6 x 5.5 x 5.0 in.)
- Control Application: HTML5 Browser-based
- Operating Temperature Range: −6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range: −29°C (-20°F) to 74°C (165°F)
Networking
- Cable Requirements
- Cat 5e or higher (shielded cable recommended)
Audio
- Frequency Response: 20 to 20,000 Hz
- Dante Digital Output
- Channel Count 4
- Sampling Rate 48 kHz
- Bit Depth 24
- Latency
- Does not include Dante latency
- 0.35 ms
- Analog Gain Range
- Adjustable in 3 dB steps
- 51 dB
- Dynamic Range (Analog-to-Dante)
- 20 Hz to 20 kHz, A-weighted, typical
- 113 dB
- Equivalent Input Noise
20 Hz to 20 kHz, A-weighted, input terminated with 150? - Analog Gain Setting= +0 dB -93 dBV
- Analog Gain Setting= +27 dB -119 dBV
- Analog Gain Setting= +51 dB -130 dBV
- Total Harmonic Distortion
- @ 1 kHz, 0 dBV Input, 0 dB analog gain
- <0.05%
- Common Mode Rejection Ratio
- 150? balanced source @ 1 kHz
- >70 dB
- Impedance: 5 kΩ
- Input Configuration: Active Balanced
- Input Clipping Level
- Analog Gain Setting= +0 dB +20 dBV
- Analog Gain Setting= +27 dB -7 dBV
- Analog Gain Setting= +51 dB -31 dBV
- Built-in Digital Signal Processing
- Per Channel Equalizer (4-band Parametric), Mute, Invert Polarity, Gain (140 dB range)
- System Audio Summing
