Radial Space Heater Analog Summing Mixer

(No reviews yet) Write a Review
SKU:
R800 7050
UPC:
676101041336
Availability:
Usually ships within 24 hours
Weight:
9.50 LBS
Shipping:
Calculated at Checkout

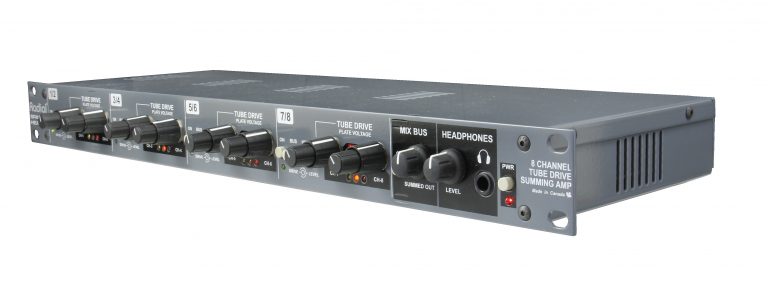

  • Radial Space Heater - Angled view
  • Radial Space Heater - Front view
  • Radial Space Heater - Angled view
  • Radial Space Heater - Rear panel
$1,699.99

Description

8-Channel Summing Mixer & Tube Drive

The Space Heater is an 8-channel tube overdrive that can be used as an analog summing mixer or as a multi-channel studio effects device, utilizing the tube circuitry for a range of effects from subtle warmth and grit to full harmonic distortion.

Features

  • 12AX7 vacuum tube overdrive & summing mixer
  • Heat switch adjusts voltage applied to each tube
  • Individual outputs to use as an 8-channel effects insert
  • Transformer-coupled outputs for vintage tone

Warm up your digital tracks

The Space Heater is a high performance summing mixer that allows you to blend tracks out-of-the-box in the analog domain, with oversized output transformers and vacuum tubes for vintage warmth and character. Eight mono input channels or four stereo pairs are available, with a heat switch on each pair to adjust the voltage on the 12AX7 tube - lower voltage settings starve the tube for a more pronounced distortion effect. Separate Drive and Level controls on each channel give you complete control over each tube circuit, providing a range of tones that allow you to fatten up digital stems or provide a distorted effect on vocals, guitars or drums.

Space Heater Applications

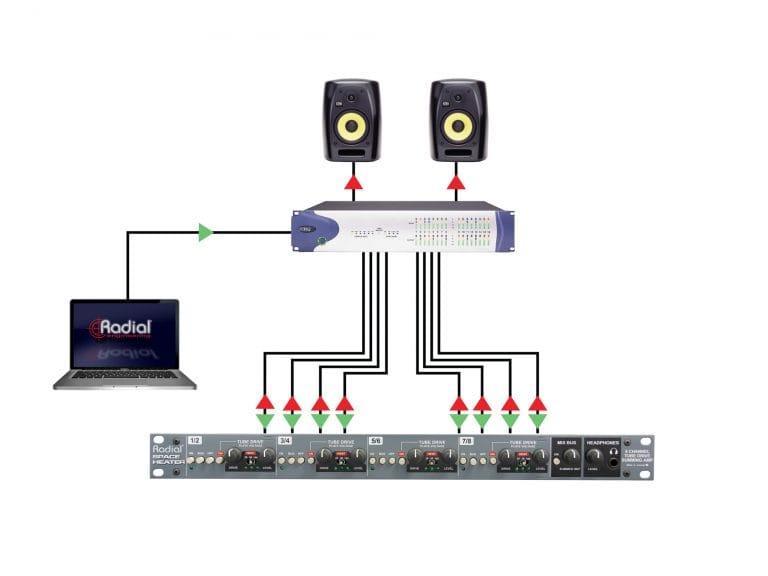

Software insert

Use the Space Heater™ on eight individual tracks in your mix to add grit or character. Adjustable LEVEL and DRIVE tailors the level of distortion from subtle to extreme.

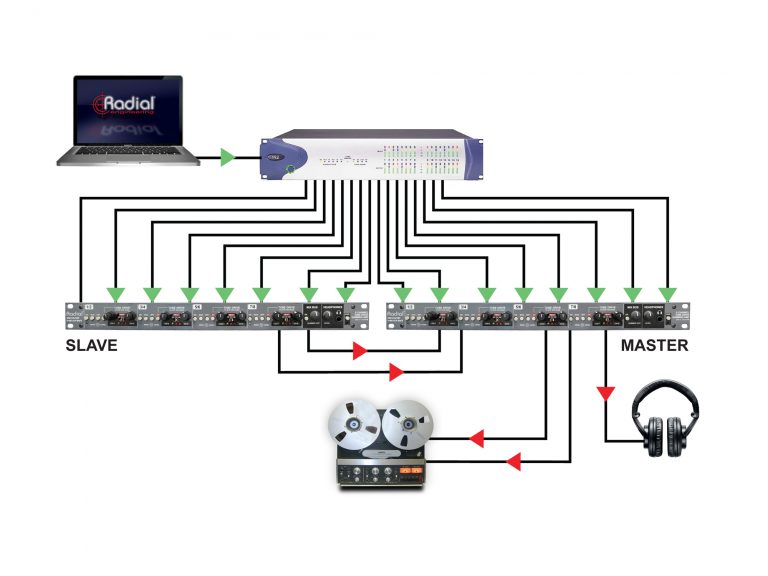

Summing 8 or more channels to stereo

Complete your final summing out-of-the-box by sending stereo stem mixes to the Space Heater. Mix four stereo stems down to a master stereo output, or link multiple Space Heaters together for analog summing heaven!

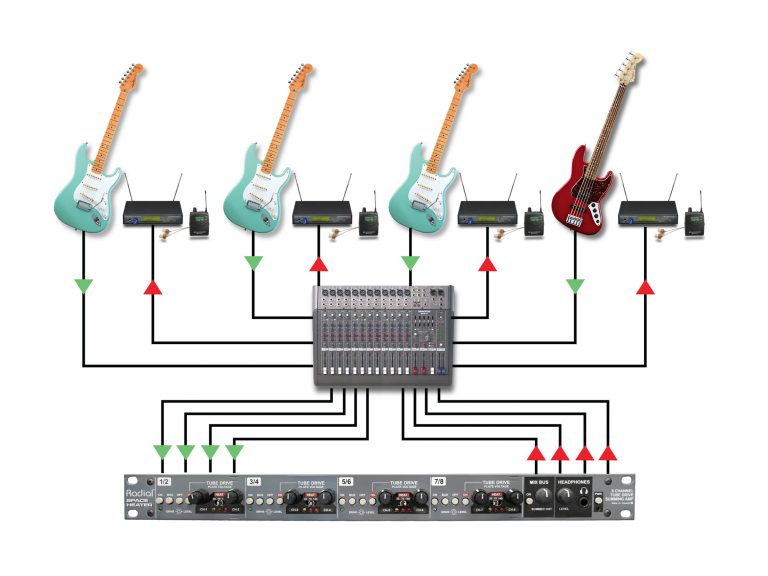

With in-ear monitors

Get the natural feel and tone back into your in-ear monitors by adding the natural compression of tube distortion into the signal path. It's like playing in front of your amp without the stage noise!

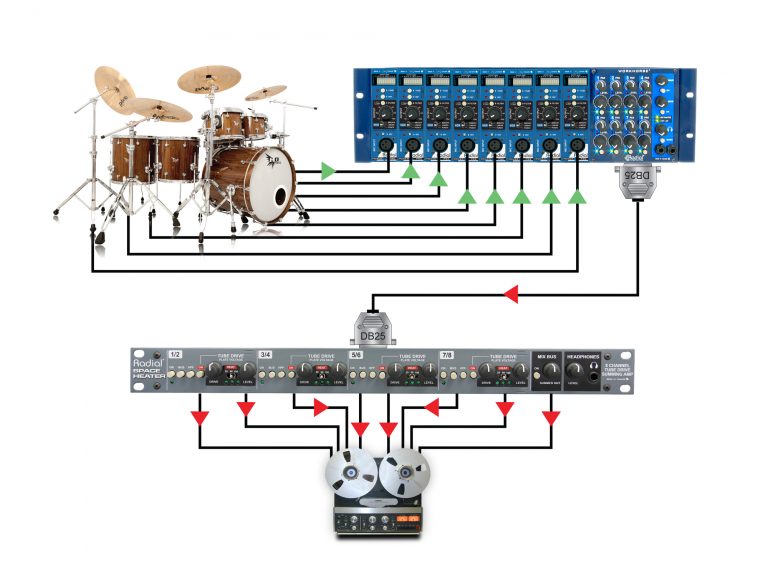

Recording drums

Set the Space Heater to 25 volts to create humungous tube crunch and adjust the drive and level to suit. Use the individual sends as outputs to feed your recorder or mix down to stereo using the built-in bus.
View AllClose

Specifications

The Radial Space Heater is an analog summing mixer and studio grade 12AX7 tube overdrive. Its built-in features and routing capabilities allow it to be used in a number of ways. The Heat setting (plate voltage for the tube) as well as the position of the Drive and Level controls will all have an impact on the specifications as we have shown here. The Space Heater can run clean, or run dirty.

Specifications

  • Audio circuit type: Class-A tube gain stage with IC buffers
  • Number of channels: 8
  • Frequency response: 20Hz – 20Khz, +0/-3dB
  • Dynamic range: 96dB
  • Gain: +33dB@140V, +29db@70V, +27dB@35V
  • Clip Level: +26dBu
  • Input Impedance: Bypasses: 50kΩ in parallel with your load device | Active: 100kΩ
  • Output Impedance: Balanced Output: 180Ω | Mix Bus: 100Ω
  • Common Mode Rejection Ratio: -70dBu @ 55Hz
  • Equivalent Input Noise: 103dBu
  • Noise: @ Max Gain: -64dBu @ 140V, -66dBu @ 70V, -70dBu @ 35V
  • Maximum Input: +22dBu

Features

  • LPF
  • Input Connectors: 1/4" TRS, D-Sub
  • Output Connectors: XLR, 1/4" TRS, D-Sub

General

  • Construction: 14 gauge steel chassis and outer shell
  • Size (L x W x D): 17.5" x 6" x 1.75" (44.5cm x 15.25cm x 4.45cm)
  • Weight: 8.5lb (3.8kg)
  • Shipping size (L x W x D): 22" x 10.375" x 4.5" (55.9cm x 26.4cm x 11.4cm)
  • Shipping weight: 9.5lb (4.3kg)
  • Power: External switching type 100V – 240V AC, 1600mA output with 5 pin XLR
  • Conditions: For use in dry locations only between 5°C and 40°C
  • Warranty: Radial 3-year, transferable

Block Diagram

Graphs

Frequency Response

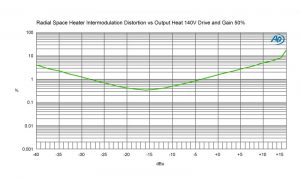

IMD vs Output Heat 140V

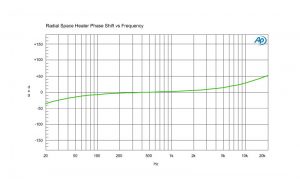

Phase Shift

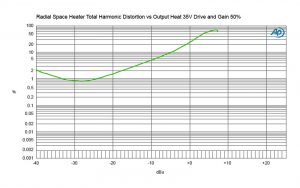

Distortion vs Output 35V

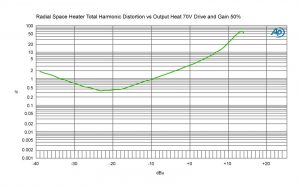

Distortion vs Output 70V

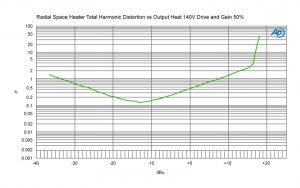

Distortion vs Output 140V
