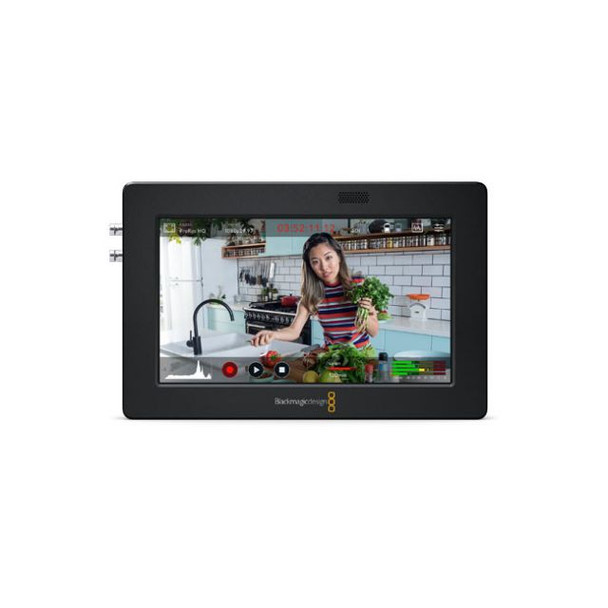

Blackmagic Design Video Assist 5'' 3G Recorder & Monitor

(No reviews yet) Write a Review
SKU:
BMD-HYPERD/AVIDA03/5
UPC:
9 338716 006407
Weight:
2.00 LBS
Shipping:
Calculated at Checkout
  • Blackmagic Design Video Assist 5'' 3G Recorder & Monitor
  • Blackmagic Design Video Assist 5'' 3G Recorder & Monitor
  • Blackmagic Design Video Assist 5'' 3G Recorder & Monitor
  • Blackmagic Design Video Assist 5'' 3G Recorder & Monitor
$525.00

Description

Blackmagic Design Video Assist 5'' 3G

Blackmagic Video Assist 5” 3G is a portable monitor, a professional recorder, a portable scope and a fantastic camera viewfinder solution! You can also add better quality record codecs and a larger monitor to any SDI or HDMI camera! The new design has innovations such as 4 built in scopes, enhanced focus assist features, a tally indicator and built in 3D LUTs. The Video Assist 5” 3G support formats up to 1080p60 and the new design also has L-Series batteries for longer life. Blackmagic Video Assist 5” 3G really is 4 products in one!

Transforms Camera Usability with Video Assist!

Traditional cameras are designed for shoulder mounted operation, so are a compromise. Hours spent leaning into a viewfinder for long tripod mounted shoots can be tough! Video Assist will transform your shooting style with an on-board rigged screen. It's much more comfortable using a screen rigged to a position best suited for a shooting setup. Plus you get better situational awareness for the operator, assistant or director. With both 5" and 7" models, you choose the size of a rigged monitor that suits you best. Plus you're also adding fantastic features such as focus zoom, focus peaking, zebras, histogram, false color, scopes, frame markers, frame guides, touch screen and more!

Customize your Touchscreen Tools and Features

With large and bright 5 and 7" touchscreens, Video Assist makes it incredible easy to frame shots and accurately focus. The touchscreen displays critical information while you’re shooting including the timecode, transport control, audio meters and a histogram for exposure. You can also customize the LCD to add or remove overlays such as current filename, focus peaking, zebra, false color, frame guides, 3D LUTs and more. 3D LUTs support allows monitoring shots with the desired color and look, plus you can even "bake in" the LUT if you want to record it into the file. If you're using Blackmagic RAW, the 3D LUT is only added into the metadata so it can be disabled in post production.

Upgrade to Better Recording for Digital Cameras

Blackmagic Video Assist is an ideal upgrade for cameras, as its bright display is bigger than the tiny displays found on consumer cameras, plus you're also adding professional focus assist features and better quality file formats. Video Assist is also a great solution for professional cameras because you can use it to upgrade older broadcast cameras to modern file formats used on the latest editing software. You get support for all editing software as you can record in Apple ProRes and Avid DNx. You can even use Blackmagic RAW on supported cameras. With both HDMI and SDI inputs you can connect it to any consumer camera, broadcast camera or even DSLR cameras.

Large HDR Monitor with Easy Touch Controls

The innovative touchscreen LCD user interface provides incredible control. On screen, there are dedicated buttons for play, stop and record, plus a mini timeline for scrolling through your recordings. You can even image swipe to jog! The LCD includes a heads up display of timecode, video standard, media status as well as audio meters. Scopes can be enabled via the touch screen as well as focus and exposure assist. There's also an extensive range of settings all controlled from the large LCD. Plus you can load and save 3D LUTs!

Built In Scopes Ensure Compliance to Standards

Video Assist features scopes for accurate exposure on cameras and compliance to broadcast standards. That means it’s also a great portable waveform monitoring solution! The waveform display provides a traditional luminance (brightness) level view of the video inputs or the playback signal. The vectorscope allows you to see the intensity of color at 100% SDI reference levels. You also get a RGB parade display which is ideal for color correction. Histogram shows the distribution of white to black detail in your images and highlights or shadows clipping. The built in scopes can even be overlaid on live video, or as a small picture in picture view at the top right of the scope!

Load Custom 3D LUTs to Recreate Film Looks!

Some cameras can output logarithmic colorspace to preserve the dynamic range, which is great for later post production, however when these files are viewed on a monitor they can look flat and washed out. 3D LUTs solve this problem because they allow you to apply a "look" to the monitor so you get an idea of how the finished images will look like when editing. LUTs can be applied temporarily for monitoring only, or they can be burned into files for use in editing when capturing Blackmagic RAW. Video Assist works with industry standard 17 and 33 point 3D LUT files, or you can work with the built in LUTs such as Extended Video, Film to Video and more.

Direct Metadata Entry for Faster Editing!

The advanced digital slate and metadata features make it extremely fast to add metadata to any shot! Simply swipe left or right from the edge of the screen to bring up the digital slate. You can even select for take numbers to be automatically incremented when you start and stop recording, so you don’t have to enter them manually for each shot! You can also set reel numbers to increment each time you format a card. All metadata is saved with the files and available in post production with software such as DaVinci Resolve!

Professional Multi Channel SDI and Analog Audio

Blackmagic Video Assist includes a built in professional audio recorder that’s much better quality than the audio found in most cameras, eliminating the need to carry around extra audio equipment. When working in SDI formats, you can record 2, 4, 8 or 16 channels of audio. For connecting microphones the 7" models have 2 XLR analog audio inputs with phantom power and high definition audio sample rates of 192 kHz at 16 and 24 bit per sample. The audio meters can even be changed between VU or PPM ballistics. Blackmagic Video Assist 12G features the latest audio technology to ensure low noise floor and very low distortion so you can use it for digital cinema and broadcast work.

Localized for 11 Popular Languages

Multiple languages are fully supported so you don't need to learn another language to use it! Support is included for English, Chinese, Japanese, Korean, Spanish, German, French, Russian, Italian, Portuguese and Turkish. At first start, Video Assist will display a menu for selecting a language, plus you can switch languages in the menus. When a language is selected, the on screen text overlays will change to the selected language, as well as overlays on the video outputs when enabled. All this means Video Assist is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

Works with the World's Most Popular Video Software

The files from Blackmagic Video Assist are common and are compatible with all operating systems or in most video software. Media can be formatted using ExFAT or HFS+ so you can easily access the media on computers and access the files like regular disks. DaVinci Resolve is perfect for using with Video Assist as it features editing, color correction, audio post production and visual effects all in one software application. Plus you can download DaVinci Resolve free of charge for Mac, Windows and Linux! You can also use recorded files in other popular software such as Premiere Pro and Final Cut Pro X. With Video Assist, your media is common so your files will remain readable in the future.

View AllClose

Specifications

Connections

  • SDI Video Inputs
    • 1 x Micro BNC
  • SDI Video Outputs
    • 1 x Micro BNC
  • SDI Rates
    • 270Mb, 1.5G, 3G
  • HDMI Video Inputs
    • 1
  • HDMI Video Outputs
    • 1
  • Analog Audio Inputs
    • None, embedded audio only.
  • Analog Audio Outputs
    • 1 x 3.5mm headphone jack.
  • Built in Speaker
    • Mono
  • Screen Dimensions
    • 5 inch 1920 x 1080.
  • Screen Brightness
    • 300nits
  • SDI Audio Inputs
    • 16 channels embedded via SDI
  • SDI Audio Outputs
    • 16 channels embedded via SDI
  • HDMI Audio Inputs
    • 8 channels embedded via HDMI
  • HDMI Audio Outputs
    • 8 channels embedded via HDMI
  • Remote Control
    • None
  • SD Interface
    • 1 x UHS-I SD slot.
  • Storage Type
    • SDXC UHS-I and SDHC UHS-I SD cards.
    • Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.
  • Computer Interface
    • 1 x USB Type‑C for webcam out, initial setup, software updates and Video Assist Utility software control.

SDI Video Standards

  • SD Video Standards
    • 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards
    • 720p50, 720p59.94, 720p60
    • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    • 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
    • 1080i50, 1080i59.94, 1080i60
  • 2K Video Standards
    • 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI
    • 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
  • SDI Compliance
    • SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M
  • SDI Metadata Support
    • HD RP188
  • Audio Sampling
    • Television standard sample rate of 48 kHz and 24-bit.
  • Video Sampling
    • 4:2:2 YUV
  • Color Precision
    • 10-bit
  • Color Space
    • REC 601, REC 709
  • Multiple Rate Support
    • SDI and HDMI switches between 270 Mb/s, 1.5 Gb/s and 3 Gb/s.
  • HDMI Video Standards
  • SD Video Standards
    • 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards
    • 720p50, 720p59.94, 720p60
    • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    • 1080i50, 1080i59.94, 1080i60
  • HDMI Color Precision
    • 10-bit
  • Copy Protection
    • HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Media

  • Media
    • 1 x UHS-I SD for HD recording.
  • Media Type
    • SDXC UHS-I and SDHC UHS-I SD cards.
  • Supported Codecs
    • ProRes 422 HQ, ProRes 422, ProRes 422 LT, ProRes 422 Proxy, DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF.

Control

  • Recorder Control
    • Integrated capacitive touchscreen LCD with Blackmagic OS onscreen controls for settings and navigating menus.
  • External Control
    • SDI and HDMI start/stop, timecode run.

Software

  • Software Included
    • Blackmagic OS

Scopes

  • Scopes
    • Waveform, RGB Parade, Vector, Histogram.
  • Viewing Modes
    • Scopes with picture in picture or picture overlay and opacity control.

Operating Systems

  • Mac 10.14 Mojave, Mac 10.15 Catalina or later.
  • Windows 8.1 and 10.

Power Requirements

  • Power Supply
    • 1 x External 12V power supply.
    • Compatible with Sony NP-F style batteries. (batteries not included)

Environmental Specifications

  • Operating Temperature
    • 0° to 40° C (32° to 104° F)
  • Storage Temperature
    • -20° to 45° C (-4° to 113° F)
  • Relative Humidity
    • 0% to 90% non-condensing

What's Included

  • Blackmagic Video Assist 5” 3G
  • Universal power supply with international adapters

Warranty

  • 12 Month Limited Manufacturer’s Warranty.
