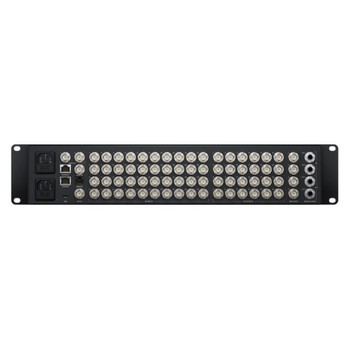

Blackmagic Design ATEM Constellation 8K

(No reviews yet) Write a Review
SKU:
BMD-SWATEMSCN4/1ME4/8K
UPC:
9 338716 006186
Weight:
22.71 LBS
Shipping:
Calculated at Checkout
  • Blackmagic Design ATEM Constellation 8K
  • Blackmagic Design ATEM Constellation 8K
$11,245.00

Description

Blackmagic Design ATEM Constellation 8K

Ultra HD live production switcher with so many features, you can combine them all to make an incredibly powerful 8K switcher! This massive 4 M/E switcher features 40 12G-SDI inputs, 24 12G-SDI aux outputs, 4 DVEs, 16 ATEM Advanced Chroma Keyers, 4 media players, 4 independent Ultra HD multi viewers, 2 SuperSource processors and even standards conversion on all inputs! When switched to work in 8K, all of these features are be combined to make a powerful native 8K switcher! You even get built in talkback and a professional 156 channel Fairlight audio mixer with EQ and dynamics!

View AllClose

Specifications

Connections

  • Total Video Inputs
    • 40 x up to Ultra HD / 10 x in 8K
  • Total Video Outputs
    • 28 x up to Ultra HD / 7 x in 8K
  • Total Aux Outputs
    • 24 x up to Ultra HD / 6 x in 8K
  • SDI Rates
    • 1.5G, 3G, 6G, 12G
  • Total Audio Inputs
    • 2 x balanced 1/4 inch Jack, 1 x 32 stereo channel BNC MADI in.
  • Total Audio Outputs
    • 2 x balanced 1/4 inch Jack, 2 x 32 stereo channel BNC MADI out.
  • Timecode Connections
    • None
  • Reference Input
    • Tri-Sync or Black Burst.
  • Video Input Re-sync
    • On all 40 inputs.
  • Frame rate and format converters
    • On all 40 inputs.
  • SDI Video Inputs
    • 40 x 10-bit 720p, 1080i, 1080p, 2160p and 10 x 4320p switchable.
  • Extra Audio Outputs
    • 1 x 5 pin XLR Talkback.
  • SDI Audio Outputs
    • 2 Ch embedded into SDI output on all outputs.
  • Extra Audio Inputs
    • 1 x 5 pin XLR Talkback.
  • SDI Program Outputs
    • Any of the 24 SDI outputs.
  • Down Converted SDI Program Output
    • None
  • SDI Preview Outputs
    • Any of the 24 SDI outputs.
  • Total Multi Views
    • 4 x up to Ultra HD / 1 x in 8K
  • SDI Multi View Outputs
    • 4
  • HDMI Multi View Outputs
    • None
  • Control Panel Connection
    • Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.
  • Internal Timecode Generator
    • Yes
  • Tally Output
    • Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
  • Computer Interface
    • 1 x USB 2.0 port.

Standards

  • SD Video Standards
    • None
  • HD Video Standards
    • 720p50, 720p59.94
    • 1080i50, 1080i59.94
    • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94
  • Ultra HD Video Standards
    • 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p50, 2160p59.94
  • 8K Video Standards
    • 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p50, 4320p59.94
  • SDI Compliance
    • SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10, SMPTE 2082-12.
  • Video Sampling
    • 4:2:2
  • Color Precision
    • 10-bit.
  • Color Space
    • REC 601, REC 709, REC 2020.
  • SDI Auto Switching
    • Automatically detects between level A and level B 3G-SDI, 6G-SDI and 12G-SDI. Requires 2SI in 8K mode.

Product Specifics

  • Upstream Keyers
    • 16 x up to Ultra HD / 4 x in 8K with Chroma/Linear/Luma key.
  • Downstream Keyers
    • 4 x up to Ultra HD / 2 x in 8K.
  • Advanced Chroma Keyers
    • 16 x up to Ultra HD / 4 x in 8K.
  • Talkback Support
    • Yes
  • Mix Minus Support
    • Yes
  • Linear/Luma Keyers
    • 21 x up to Ultra HD / 7 x in 8K
  • Transition Keyer (Stinger/DVE)
    • 4 Stinger, 4 DVE .
  • Total Number of Layers
    • 28 x up to Ultra HD / 7 x in 8K
  • Pattern Generators
    • 21 x up to Ultra HD / 9 x in 8K
  • Color Generators
    • 2
  • DVE with 3D Borders & Drop Shadow
    • 4 x up to Ultra HD / 1 x in 8K
  • Control Panel
    • Front fascia emergency switching, software or optional hardware panel.
  • Routable Windows
    • 64 x up to Ultra HD / 16 x in 8K
  • Tally
    • Red for program and green for preview indication.
  • Windows Source Labels
    • Yes

Multi View Monitoring

  • Multi View Monitoring
    • 4 x 16 Multi View pattern options for up to 64 total views.
  • Multi View Video Standard
    • Select HD, Ultra HD or 8K.

Media Player

  • Media Players
    • 4 x up to Ultra HD / 1 x in 8K
  • Channels
    • Fill and key for each media player.
  • Media Pool Still Image Capacity
    • 64 x up to Ultra HD / 24 x in 8K with fill and key.
  • Media Pool Clip Capacity
    • 4 x up to Ultra HD / 2 x in 8K with fill and key.
  • Media Player Clip Length in 720 HD
    • 3200 frames.
  • Media Player Clip Length in 1080 HD
    • 1600 frames.
  • Media Player Clip Length in Ultra HD
    • 400 frames.
  • Media Player Clip Length in 8K
    • 100 frames.
  • Media Pool Still Image Format
    • PNG, TGA, BMP, GIF, JPEG and TIFF.
  • Media Pool Video File Format
    • TGA Sequence.
  • Media Pool Audio File Format
    • WAV, MP3 and AIFF.

Display

  • Interface
    • Minimum monitor resolution of 1366 x 768.
  • Front panel
    • Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.

Processing

  • Processing Delay
    • < 7 lines in up to Ultra HD / in 10 lines in 8K
  • Audio Mixer
    • 156 Channel mixer
    • Selectable On/Off/Audio-Follow-Video.
    • Level and Peak metering.
    • Master gain control.
    • 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
  • Down Conversion
    • None

Software

  • Control Panel Included
    • ATEM Software Control Panel included free for Mac 10.13 High Sierra, Mac 10.14 Mojave or later and Windows 8.1 64-bit or Windows 10 64-bit.
  • Software Updates
    • Using USB 2.0 connection directly connected to Mac OS or Windows computers. Includes ATEM Setup Utility.
  • Configuration
    • Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.

Operating Systems

  • Mac 10.14 Mojave, Mac 10.15 Catalina or later.
  • Windows 8.1 64-bit or Windows 10 64-bit.

Power Requirements

  • Power Supply
    • 2 x Internal 100 - 240 AC.
  • Power Usage
    • 300W

Physical Specifications

  • Weight: 18.52 lbs
  • Width x Height x Depth (inches): 19 x 3.54 x 13.23"
  • Physical Installation: 2 Rack Unit Size.

Environmental Specifications

  • Operating Temperature
    • 0° to 40° C (32° to 104° F)
  • Storage Temperature
    • -20° to 60° C (-4° to 140° F)
  • Relative Humidity
    • 0% to 90% non-condensing

What's Included

  • ATEM Constellation 8K
  • SD card with software and manual

Warranty

12 Month Limited Manufacturer's Warranty.
