Appsys ADX-16 Bidirectional ADAT/TOSLINK Extender Kit

(No reviews yet) Write a Review
SKU:
ADX-16
UPC:
700613617274
Weight:
0.50 LBS
Shipping:
Calculated at Checkout
  • Appsys ADX-16 Bidirectional ADAT/TOSLINK Extender Kit
  • Appsys ADX-16 Bidirectional ADAT/TOSLINK Extender Kit
$249.00

Description

Bidirectional ADAT/TOSLINK Extender Kit

The ADX-16 Kit has been designed to overcome the length limitations (5m/16 ft) of optical TOSLINK® interconnects running ADAT Lightpipe®, S/PDIF® and other protocols. The kit enables you to run two TOSLINK connections (one in each direction) over a single Cat5 cable and up to 100m / 330ft. in length, opening up a range of new possibilities (e.g. for audio distribution within a building).

Applications

  • Economic digital 8x8 snake with lowest latency
  • Recording of 8 channels from a remote location, with master clock transmitted to the remote unit
  • Interconnection of ADAT enabled equipment (e.g. DAWs and digital mixers)
  • If analog conversion is needed at one or both ends, we recommend using 8-channel ADC/DACs (e.g. Behringer ADA8000 or Focusrite Octopre mkII Dynamics) on the respective end(s)

Features

  • Bidirectional transmission over up to 100m/330ft. using a single Cat5 cable
  • Reliable, lossless, true bit-transparent transmission
  • Near-zero latency (< 1µs)
  • Compatible with any data format which can be sent over TOSLINK (ADAT, SPDIF, AC-3/Dolby Digital, DTS ...)
  • Quality product "Made in Switzerland"

Kit Contents

  • Converter Box ADX-16-S (1xTOSLINK In + 1xTOSLINK Out to Cat5 with power supply)
  • Converter Box ADX-16-R (1xTOSLINK In + 1xTOSLINK Out to Cat5)
  • AC adapter in "green" switching technology
  • Printed manual
View AllClose

Specifications

  • Maximum length of Cat5 cable 100m / 330 ft
  • Supported data formats
    • ADAT® (8ch@48kHz, 4ch@96kHz, 2ch@192kHz per direction)
    • S/PDIF (up to 2ch@96kHz per direction)
    • Dolby®Digital 5.1 (AC-3)
    • DTS®
    • all other formats capable of TOSLINK transmission
    • Note: Both directions operate independently from each other
  • Latency added to thelink < 1µs

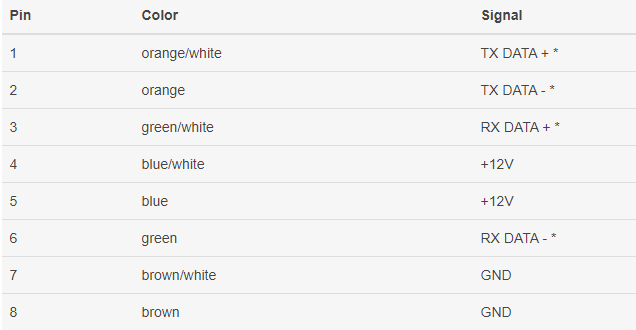

  • Cat5 cable pin assignment:




* TX/RX functions seen from unit with power connector, mapped to RX/TX on the other unit.

  • Power supply
    • 12VDC, 150mA. Power to remote unit is supplied via Cat5 cable.
    • Plug: OD=5.5mm, ID=2.5mm, center positive
  • Operating temperature 0...50°C
  • Storage temperature 0...70°C, non-condensing
  • Dimensions 66.5x66.5x28mm (LxBxH, each unit)
  • Weight 60g (each box)
