Description

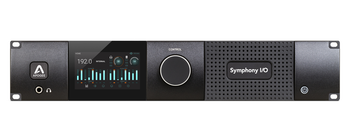

This configuration is the same as the Symphony MK II 16x16 analog I/O (find more information here) , with 8 Mic preamps added.
*This console is Pro Tools HD model. We have the same setup with Thunderbolt instead here.
Specifications
INPUTS
- Analog IN: 16 balanced inputs on 2 DSUB 25-pin connectors
- Coax IN: S/PDIF on 1 RCA connector
OUTPUTS
- Analog OUT: 16 balanced outputs on 2 DSUB 25-pin connectors
- Coax OUT: Supports SPDIF on 1 RCA connector
Connection:
- Pro Tools HD Core card
- Pro Tools Accel PCI card
- Pro Tools HD Native PCI card
- Pro Tools HD Native Thunderbolt
- Pro Tools HDX PCI card
Performance:
- 44.1kHz – 192kHz
- Sample accurate compatibility with Pro Tools Delay Compensation
Computer:
- Mac or PC
Control:
- Front panel touchscreen
Compatible Software:
- Pro Tools HD 9 or greater
MIC PREAMPS
- 8 digitally controlled, 85dB microphone preamps
- Upgrades functionality of Analog I/O Module by adding mic preamps to the existing line inputs
- Creates a direct connection between the Mic Preamp Module and the Analog I/O Module by inserting a mic preamp stage before the line inputs
- Selectable 48v phantom power, Soft Limit and phase invert
INPUTS
- 4 Hi-Z 1/4” instrument inputs capable of handling high level instruments
INSERTS
- 8 balanced software assignable analog insert points
- Send 1-8 and Return 1-8 on 2 DSUB 25-pin connectors
