Description
DTOX-32
D-sub <> XLR Breakout Panel for AES/EBU
THE DTOX-32 BREAKOUT PANEL IS THE IDEAL EXTENSION FOR DIGITAL MULTICHANNEL INTERFACES

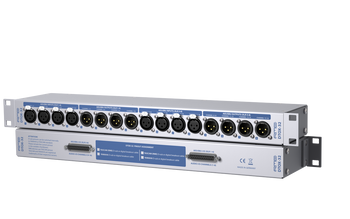

It includes two sets of D-sub to 4 x XLR male and 4 x XLR female each, replacing common breakout cables D-sub to XLR by a professional, solid, stable rack-mounted system. DTOX-32 is pin-compatible to TASCAM (=RME) and Yamaha formats.
RACK MOUNT
The DTOX-32 (also DTOX-16) has removable rack-mount-brackets and can be mounted in front or back position.

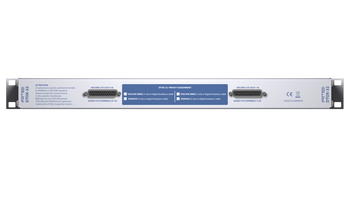

CHANGING THE PINOUT AT THE D-SUB 25 CONNECTORS
There are two selectable pinout standards for the 25-pin D-sub connectors of the DTOX-32: the TASCAM-compatible one and the YAMAHA-compatible format. If not ordered specifically, the DTOX-32 is set to the factoy default TASCAM (RME). The respective format is changed by an internal connector inside panel. To change the format requires opening the housing with a medium size cross recessed screwdriver (PH-2 size). ->
Specifications
Technical Specifications
- 8 x XLR Output
- 8 x XLR Input
- 2 x D-sub 25-pin connectors
- supports RME (=Tascam) and Yamaha-Formats (Pinout internal switchable)
- 19" Rack
