Elation PALADIN PANEL 50 x 15W RGBW IP65 Wash

(No reviews yet) Write a Review
SKU:
PAL285
Weight:
33.00 LBS
Shipping:
Calculated at Checkout
  • Elation PALADIN PANEL 50 x 15W RGBW IP65 Wash
  • Elation PALADIN PANEL 50 x 15W RGBW IP65 Wash
  • Elation PALADIN PANEL 50 x 15W RGBW IP65 Wash
$1,920.00

Description

PALADIN Panel

The PALADIN Panel™ is a compact and powerful outdoor floodlight for a wide variety of applications. Using 50x15W RGBW cells it provides a total output of up to 20,000 lumens. Certified to IP65 it features a rugged design with a solid build quality, eliminating the need to worry about dust and water ingress. IP rated connections make it an ideal product to illuminate large areas of any outdoor event with vibrant and powerful colors. It can be operated standing on the floor or be hung in any orientation using the provided omega brackets. Available cell control and strobe features make the PALADIN Panel also a versatile effects fixture or audience blinder.

Features

  • 750W RGBW Flood Light
  • 5x2 Cell Control
  • Rugged IP65 Design for Outdoor Events
  • Floor Standing or Mountable in any Orientation
  • Optional 60 and 100 degree Lens Kits Available*

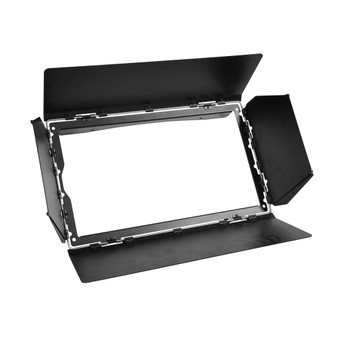

  • Optional Barn Door Kit Available*
  • *Special Order Item
View AllClose

Specifications

SOURCE

  • 50x 15W RGBW LED Emitters
  • 50,000 Hour Average LED Life*
  • *Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

  • 6,000K Color Temperature
  • 20,000 Total Lumen Output
  • 14° Beam 23° Field Angle (without diffuser)
  • 22° Beam 45° Field Angle (with diffuser)

CONTROL / CONNECTIONS

  • 11 DMX Channel Modes (88 Total Channels)
  • 5x2 Cell Control
  • Manual Tilt Adjustment
  • DMX, RDM Protocol Support
  • Standalone and Master / Slave Operation
  • 4 Button OLED Control Display
  • IP65 5pin DMX In/Out
  • IP65 Power In/Out
  • With Wired Digital Communication Network

SIZE / WEIGHT

  • Length: 20.9” (531mm)
  • Width: 5.8” (148mm)
  • Height: 13.7” (348mm)
  • Weight 33.0 lbs. (15kg)

ELECTRICAL / THERMAL

  • AC 100-240V - 50/60Hz
  • 800W Max Power Consumption
  • 5°F to 113°F (-15°C to 45°C)

APPROVALS / RATINGS

  • CE | cETLus (pending) | IP65

FIRMWARE UPDATES

  • Current Version: V1.02
