Description
Key Features
- High power 200 mm (8 in) dual-coil CMCD™ Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth and improved phase coherence.
- Large format neodymium HF driver provides clear, intelligible high frequency projection.
- Large PT™ Progressive Transition™ waveguides provide consistent 40° x 30° pattern control, low distortion at high SPL levels and smooth frequency response.
- Rotatable mid and high frequency waveguides allow either horizontal or vertical cabinet orientation.
- Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes.
Applications
- Performing arts facilities
- Live theaters
- Auditoriums
- Houses of worship
- Dance clubs
- Sports facilities
PD6200/43 is a Precision Directivity™ 40° by 30° mid-high frequency loudspeaker designed for applications requiring high output capability with excellent pattern control.
The CMCD-82H cone midrange compression driver consists of a driver/phasing plug assembly providing high output with low distortion. CMCD-82H’s extended response allows for smoother transition to the high frequency driver and the smaller entrance diameter into the waveguide provides for better pattern control. The integral 200 mm (8 inch) driver features a high power Differential Drive® dual voice coil design. The 2432H large format high frequency compression driver utilizes a neodymium magnet and aluminum diaphragm to deliver clear and intelligible high frequency projection, extended frequency response, and low distortion at even the highest drive levels.

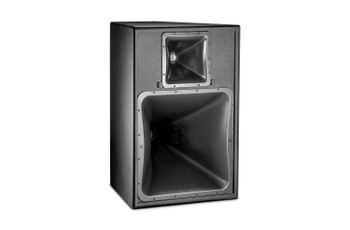

Large PT Progressive Transition waveguides achieve an optimum balance of extremely well controlled coverage with low distortion, smooth frequency response, and natural sound character. The waveguides are rotatable for cabinet positioning in either horizontal or vertical orientation. A high-slope crossover network minimizes band overlap and the resulting well-controlled off-axis response enhances arrayability.
The loudspeaker can be operated in either biamplified or in full passive mode. Input connectors include both Speakon® and CE-compliant covered barrier strip for hookup versatility. The cabinet is fitted with twenty M10 threaded suspension points, supporting a wide variety of installation approaches.
PD6200/43 is part of JBL’s broad lineup of installed sound loudspeakers, complementing the larger PD700 mid-high cabinets with a more compact size and supplementing the smaller AE Series cabinets with higher SPL capability and larger horns for pattern control to a lower frequency
Specifications
- Frequency Range1 (-10 dB): 200 Hz to 18 kHz
- Frequency Response1 (±3 dB): 240 Hz to 16 kHz
- Coverage Pattern: 40° x 30°
- Directivity Factor (Q): 24.1
- Directivity Index (DI): 16.0 dB
- Crossover Modes: Bi-amp/Passive switchable
- Passive Crossover: 1.7 kHz
- Transducer Power Ratings (AES):
- MF: 350 W (1400 W peak), 100 hrs
- HF: 75 W (300 W peak), 2 hrs
- Long-Term System Power Rating (IEC): Passive Mode: 300 W (1200 W peak), 100 hrs.
- Maximum SPL:
- Bi-amp mode: MF: 137 dB-SPL cont avg (143 dB peak)
- HF: 135 dB-SPL cont avg (141 dB peak)
- Passive mode: 136 dB-SPL cont avg (142 dB peak)
- System Sensitivity (1W @ 1m): Passive Mode: 111 dB-SPL
Transducers
- Mid Frequency Driver: CMCD–82H cone mid-range compression driver with integral 200 mm (8 in) diameter Differential Drive® dual voice coil driver
- Nominal Impedance: 8 ohms
- Sensitivity (1W, 1m within operational band): 112 dB-SPL
- High Frequency Driver: 2432H, 38 mm (1.5 in) exit compression driver with voice coil
- Nominal Impedance: 8 ohms
- Sensitivity (1W @ 1m): 116 dB-SPL
- Waveguides:
- MF: PT-N43MF 600 x 600 mm (24 x 24 in)
- HF: PT-H43HF 300 x 300 mm (12 x 12 in)
Physical
- Enclosure: Trapezoidal with 12.5 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood.
- Suspension Attachment: 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories).
- Finish: Black DuraFlex™ finish. White (-WH) available upon request.
- Optional Weather Resistant Versions: WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperature. See WRC/WRX configuration sheet for details.
- Grille: Powder coated 14 gauge perforated steel, acoustically transparent foam backing (grille cloth backing on white units)

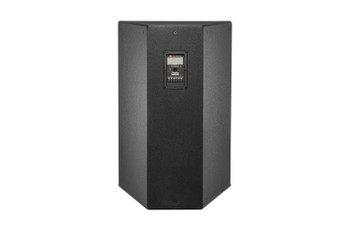

- Input Connectors: Neutrik Speakon® NL4, plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
- Environmental Specifications: Mil-Std 810; IP-x3 per IEC529. For higher environmental ratings, use WRC or WRX.
- Dimensions 991 x 673 x 897 mm
- (H x W x D in vertical orientation): (39.0 x 26.5 x 35.3 in)
- Net Weight: 69.0 kg (152 lb)
- Optional Accessories: 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts
