Description

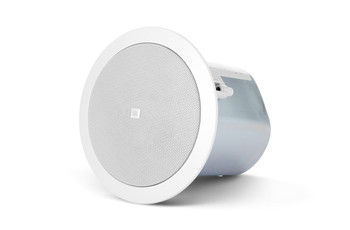

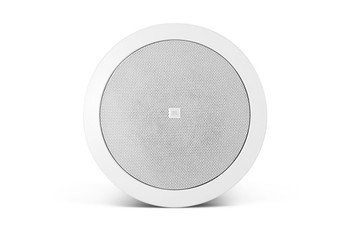

JBL Control 24CT-BK Background/Foreground Ceiling Speaker
The Control 24CT-BK is a compact ceiling speaker providing premium performance in background, foreground and music-pluspaging sound systems. The Control 24CT-BK is perfectly suited for a wide variety of applications from professional offices and airports to restaurants and specialty retail stores. High power handling, wide frequency response and low distortion make the Control 24CT-BK ideal for sound systems requiring a higher fidelity sound from ceiling loudspeakers. The premium performance capability ensures excellent sound character, providing pleasant, enveloping sound throughout the listening area.
Features:
- Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (¾ in) titanium coated diffraction-loaded tweeter
- High power, wide frequency response and low distortion for high sound level capability
- Wide coverage allows fewer speakers, reducing the cost of the installed sound system without sacrificing performance
- Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking
- Black baffle and grille works well in black and dark ceiling
- Sold in Pairs
Specifications
Freq. Range (-10 dB): 80 Hz - 20 kHz
Power Capacity: 80 Watts Continuous Program Power; 40 Watts Continuous Pink Noise
Transformer Taps: 70 V- 30W, 15W, 7.5W & 3.7W taps
100 V- 30W, 15W, & 7.5W taps
Nominal Sensitivity: 86 dB SPL @ 1 m (3.3 ft)
Nominal Coverage Angle: 130° conical coverage
Directivity Factor (Q): 2.4 averaged 500 Hz to 4 kHz
Directivity Index (DI): 3.8 averaged 500 Hz to 4 kHz
Transformer Insertion Loss: Max 0.8 dB
Low-Frequency Transducers: 100 mm (4.0 in) Polypropylene-coated, 1" coil on aluminum former
High-Frequency Transducers: 19 mm (0.75 in) Titanium coated polyester
Enclosure: Backcan: Formed steel
Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
Termination: Removable locking connector with screw-down terminals.
2 input terminals and 2 loop-thru output terminals.
Max. wire size: 12 AWG (2.5 mm)
Outside Dimensions (H x Dia): 200 x 195 mm (7.9 x 7.7 in)
184 mm (7.2 in) front of ceiling tile to back of backcan
Cutout Size: 168 mm (6.6 in)
Net Weight (ea): 3.5 kg (8 lb)
Shipping Weight (pair): 8.0 kg (18 lb)
Included Accessories: C-shaped support backing plate
2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles)
Cutout template
Paint shield
Removable locking wiring connector
