Description

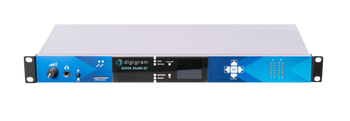

IQOYA X/LINK-ST
IQOYA X/LINK-ST embraces all live remote broadcasting and program distribution applications. This 1U rack IP audio codec delivers a stereo source (or two mono sources) over IP networks for STL and SSL links, DVB audio, WEB radio, and also for full-duplex live remote broadcasts – no matter what. It will support all types of infrastructures and will relentlessly work over any IP networks. Our low consumption, fanless and powerful hardware IQOYA X/LINK-ST platform is your workhorse for 24/7/365 use. It will not let you down.
- Go stereo / Full stereo / Mono – stereo: you choose
- Delivering stereo source or two mono sources
- One IQOYA fits all infrastructures
- Legacy audio and AoIP studio infrastructures Supports analog, AES3, AES67 and RAVENNA
- The most flexible asset for your networks
- Managed or unmanaged networks
- Designed for reliable operations
- Registration to a backup SIP server
- On Air, IQOYA has your back
- Automatic redialing for live contributions
- Always hold the line
- 2 backup levels for decoding on transmitter sites (including sound files and playlists on SDHC card)
Key features
- Total separation of IP traffics
- Two redundant internal power supply units
- 2 channels of live remote broadcasting via SIP and symmetric RTP
- Multiformat encoding and multiprotocol streaming for audio programs distribution
Specifications
CONNECTIVITY
- Analog Line 2 analog inputs & outputs, XLR, +24 dBu max
- AES3 audio 1 AES3 inputs and outputs, XLR
- AES67/Ravenna
- 2 I/O channels via one of the 4 network ports
- 4 Network ports
- 3 Gbps / 1 x 100 Mbps, RJ-45
- Auxiliary data 1 RS232 – 4 GPIOs
TECHNICAL SPECIFICITIES
- Fanless, low consumption
- Front panel LCD display/keypad and vu-meters
- Front panel headphones (6.35mm female jack)
- Front panel SDHC card reader
- Switchable hardware by-pass of audio inputs to outputs in case of power failure
