Description

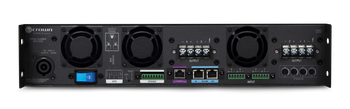

For applications that require Dante or AES67 networked audio, the Crown DriveCore Install DA Series provides a balanced combination of output power, channel count and speaker load flexibility along with proprietary DriveCore® technology for superb efficiency and exemplary audio quality. The DCi DA Series includes a high-powered DSP with JBL speaker tunings, network control/monitoring, and the ability to drive 2/4/8/16 ohm, 70V and 100V speaker loads. The amp’s advanced capabilities and support for Dante Domain Manager makes it perfect for installations that have standardized on Dante for networked audio transport.
Features
- INTEGRATED DANTE™ / AES67 NETWORKED AUDIO – Simplifies installation by enabling Dante / AES67 networked audio signals to be sent directly to the amplifier. Provides flexibility of installation options available with our expansive line-up of DriveCore Install amplifiers.
- NETWORK CONFIGURATION, MONITORING & CONTROL – Better monitoring, control and audio manipulation with the HiQnet™ protocol over standard TCP/IP network. The HiQnet Audio Architect software allows for remote configuration, monitoring, and control of all aspects of the DCi-DA Series amplifiers.
- PROGRAMMABLE GENERAL PURPOSE INPUT/OUTPUT PORT – GPIO ports can be configured in many different ways, such as volume controls, recall presets, or to report errors to third-party control system.
- DIGITAL SIGNAL PROCESSING – DSP capabilities include the following:
- LevelMAX Limiters
- Input/Output EQ
- Crossover
- Delay
- Matrix Router
- Speaker Line Monitoring
Specifications
- Redundant, independent Dante / AES67 ports
- Primary & Secondary
- Will accept 48khz or 96khz
- Capable of sending out Dante / AES67 audio from analog inputs pre/post processing (@ 48kHz)
- Audio Architect Control and Monitoring
- DriveCore Amplifier Technology
- Universal PFC Power Supply
- DSP
- 48kHz processing
- 20 Presets
- Input router
- High, medium, and low priority inputs
- Input delay up to 2s
- Input EQ
- Crossover
- Output EQ
- Output Delay up to 100ms
- LevelMAX limiter
- Load Monitoring
- Pilot tone
- Normal
- Burst
- Continuous Load Monitoring
- Sweep Load Monitoring
- Channel Auto-Standby
- Speaker Tunings
- Aux-Port
- Sleep contact closure
- Amp Status output
- Removable air filters
- Front panel LED indicators
- AES67 Compatible
