Description

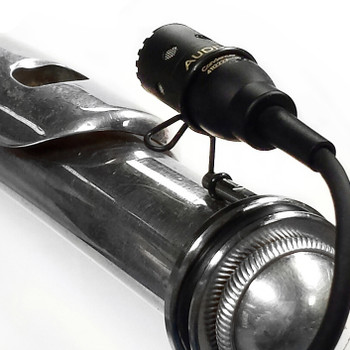

The CPSADX10C and the CPSADX10HC are condenser capsules with threaded housings. The CPSADX10C has a cardioid polar pattern and is designed for the Audix lavalier condenser microphone ADX10, while the CPSADX10HC capsule has a hypercardioid polar pattern and is to be used for the ADX10-HC.
Specifications
ADX10
Transducer Type: Pre-Polarized Condenser
Frequency Response: 50 Hz - 18 kHz
Polar Pattern: Cardioid
Output Impedance: 800 ohms
Sensitivity: 5 mV / Pa @ 1k
Equivalent Noise Level: <29 dB (A-weighted)
Signal to Noise Ratio: >65 dB
Maximum SPL: ≥120 dB
