Description

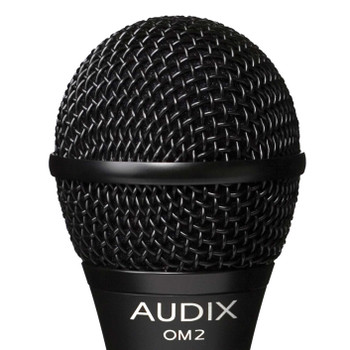

Modular capsule adapter with the OM2 dynamic VLM capsule. For use with the H60 wireless transmitter.
Specifications
Transducer Type: Dynamic
Frequency Response: 50 Hz - 16 kHz
Polar Pattern: Hypercardioid
Output Impedance: 290 ohms
Sensitivity: 1.6 mV / Pa @ 1k
Capsule Technology: VLM Type B
Off-Axis Rejection: >25 dB
Maximum SPL: ≥140 dB
Power Requirements: None
Connector: 3-pin XLRm
Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Materials / Finish: Zinc Alloy / Black Finish
