Description

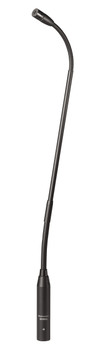

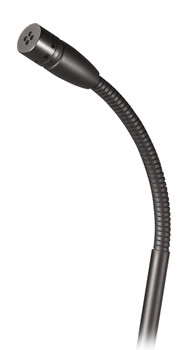

The PRO 49Q and PRO 49QL quick-mount double-gooseneck cardioid condenser microphones are designed to plug into any standard XLRF-type surface or cable connector. With a flat, smooth frequency response and self-contained electronics, these mics feature a quiet, fixed-placement, long-life gooseneck and wide-range condenser element with low-mass diaphragm for superior performance. Available in two lengths: 13.07" (PRO 49Q); 16.46” (PRO 49QL). The small-diameter double gooseneck design permits highly flexible positioning while maintaining a smooth, well-contoured appearance.
The microphone requires 9V to 52V phantom power for operation. The microphone’s cardioid polar pattern provides a 120° angle of acceptance. An XLRM-type connector insert at the base allows the microphone to be plugged directly into an XLRF-type panel jack or microphone cable. The microphone comes equipped with a foam windscreen. The microphone is enclosed in a rugged housing with a low-reflectance black finish.
Features
- Wide-range condenser element with low-mass diaphragm for superior performance
- Self-contained electronics eliminate need for external power modules
- Flat, smooth frequency response
- Quiet, fixed-placement long-life gooseneck
- Plugs into any standard XLRF-type surface or cable connector
- Overall length of 13.07" (332.0 mm)
- Also available in a 16.46" (418.0 mm)-long version as PRO 49QL
Specifications
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 70-16,000 Hz
OPEN CIRCUIT SENSITIVITY -37 dB (14.1 mV) re 1V at 1 Pa
IMPEDANCE 100 ohms
MAXIMUM INPUT SOUND LEVEL 134 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) 106 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 66 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 9-52V DC, 2 mA typical
WEIGHT 2.8 oz (80 g)
DIMENSIONS 13.07" (332.0 mm) long, 0.47" (12.0 mm) head diameter, 0.74" (18.9 mm) base diameter
OUTPUT CONNECTOR Integral 3-pin XLRM-type
ACCESSORY FURNISHED AT8146 windscreen
AUDIO-TECHNICA CASE STYLE M23
