Audio-Technica AT803 Condenser Lavalier Microphone

(No reviews yet) Write a Review
SKU:
AT803
UPC:
4961310098711
Weight:
2.00 LBS
Shipping:
Calculated at Checkout
Availability:
Usually ships within 24 hours
  • Audio-Technica AT803 Condenser Lavalier Microphone
  • Audio-Technica AT803 Condenser Lavalier Microphone
$149.00

Description

The AT803 is a miniature clip-on/lavalier condenser microphone with an omnidirectional polar pattern. It is designed for quality sound reinforcement, professional recording, television and other demanding sound pickup applications.

The microphone is intended to be worn on the clothing or hidden in props for excellent yet unobtrusive sound pickup. The wide-range capability of the microphone ensures clean, accurate reproduction with high intelligibility for speakers, presenters and other performers. Its small size makes it ideal for use in applications where minimum visibility is required.

The microphone requires 11V to 52V phantom power or a 1.5V AA battery for operation. A battery need not be in place for phantom power operation. The microphone includes a 1.8 m (6') permanently attached miniature cable. Its free end connects to the provided AT8531 power module via a TA3F-type connector. The output of the power module is a 3-pin XLRM-type connector. A 3-position switch in the power module permits choice of off, on/flat
response or on/low-roll-off (via integral 80 Hz high-pass UniSteep® filter). The roll-off position reduces the pickup of low-frequency ambient noise. The microphone comes equipped with a power module, a clothing clip, a windscreen, a battery and a protective carrying case.

Features

  • High intelligibility for lecturers and stage/TV performers
  • Provides excellent yet unobtrusive sound pickup
  • UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
  • Operates on battery or phantom power
  • 6' (1.8 m) cable permanently attached to mic, TA3F connector at power module
  • RoHS compliant—free from all substances specified in the EU directive on hazardous substances

Accessories Furnished

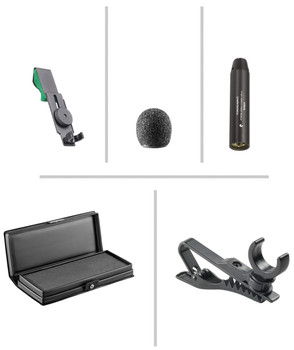

AT8531 power module; AT8419 clothing clip; AT8116 windscreen; battery; protective carrying case.

View AllClose

Specifications

ELEMENT Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN Omnidirectional
FREQUENCY RESPONSE 30-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 18 dB/octave

OPEN CIRCUIT SENSITIVITY

  • Phantom: -44 dB (6.3 mV) re 1V at 1 Pa
  • Battery: -46 dB (5.0 mV) re 1V at 1 Pa

IMPEDANCE

  • Phantom: 200 ohms
  • Battery: 270 ohms

MAXIMUM INPUT SOUND LEVEL

  • Phantom: 135 dB SPL, 1 kHz at 1% T.H.D.
  • Battery: 121 dB SPL, 1 kHz at 1% T.H.D.

DYNAMIC RANGE (typical)

  • Phantom: 107 dB, 1 kHz at Max SPL
  • Battery: 93 dB, 1 kHz at Max SPL

SIGNAL-TO-NOISE RATIO 66 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 2 mA typical
BATTERY TYPE 1.5V AA/UM3
BATTERY CURRENT / LIFE 0.4 mA / 1200 hours typical (alkaline)
SWITCH Off, on-flat, on-roll-off
WEIGHT (MICROPHONE) 2.8 g (0.1 oz)
WEIGHT (POWER MODULE) 139 g (4.9 oz)
DIMENSIONS (MICROPHONE) 25.0 mm (0.98") long, 10.2 mm (0.40") diameter
DIMENSIONS (POWER MODULE) 84.0 mm (3.31") H x 63.0 mm (2.48") W x 22.0 mm (0.87") D
OUTPUT CONNECTOR (POWER MODULE) Integral 3-pin XLRM-type
CABLE 1.8 m (6') long (permanently attached to microphone), 2.6 mm (0.10") diameter, 2-conductor, shielded cable with TA3F-type connector
