Description

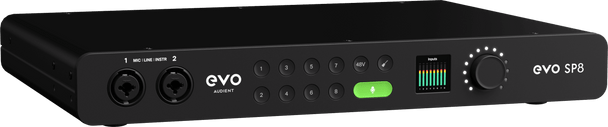

EVO SP8
8 Channel Smart Preamp with AD/DA
The mic preamp of the future
The ultimate studio preamp expander is here. EVO SP8 is designed to be the perfect partner for expanding your existing audio interface. Give your studio the performance and capability boost it needs, providing eight intelligent EVO Preamps that set their own levels with Smartgain, advanced AD/DA converter technology and a versatile range of I/O connectivity. Add to that two JFET instrument inputs, the all new, groundbreaking Motion UI control system and exceptional audio performance across the board. The EVO SP8 might just be the world’s smartest Mic Preamp.
- EVO Mic Preamps
- JFET Instrument Inputs
- 8 x Line Outputs
- 2 x ADAT Inputs & Outputs
- Class Leading AD/DA Converters
The perfect partner for your audio interface
Bigger sessions demand more channels and expanding your existing audio interface via ADAT might be the most cost effective solution to scale up your studio. EVO SP8 provides eight mic/line inputs, eight line outputs and 2 x ADAT connections, giving you enough I/O firepower to easily tackle multi-mic sessions like recording drums, or taking on a full band.
The EVO Mic Preamp
Get studio quality recordings
Say hello to the preamps your studio needs. Eight sonically stunning EVO preamps will effortlessly level up your recordings, delivering professional grade audio performance backed by 25 years of engineering experience. Our analogue mic preamp has been designed to deliver the most accurate, clean and true to source version of your audio, no matter what you’re recording.
An analogue mic pre but better
Fire your studio into the 21st century with our powerful EVO Preamp technology. Combining all the sonic advantages of a studio-grade analogue mic preamp with digitally controlled tactile precision, the EVO Preamp gives you the ability to set your gain with pin-point accuracy, right down to the decibel.
Smartgain
A total gain-changer
Make recording drums and larger sessions easy with Smartgain. Automatically set the gain for all eight channels at once with a simple touch of a button. Powered by our lightning quick Smartgain algorithm, Smartgain uses advanced peak analysis to automatically analyse, adjust and set your gain to the perfect levels – all in less than 20 seconds! Now it’s up to you to figure out what to do with all that time you’re saving…
Your own assistant engineer
Working Solo?
Record, adjust levels, repeat. Sound familiar? Save time and make recording on your own a breeze and gain the power to save time with Smartgain. Simply set up your mics, hit Smartgain, start performing and EVO SP8 will take care of the rest.
Specifications
Microphone Preamplifier
- Mic Gain Range: 58dB
- Line Gain Range: 58dB (-10dB pad)
- Phantom Power: 48v +/-4v @ 10mA/Channel
- Mic EIN: <-127.5dB
- CMRR: >80dB @ 1kHz
- Maximum Input Level: +16dBu
- Input Impedance (Mic): >3kΩ Balanced
- Input Impedance (Line): >10kΩ Balanced
- Frequency Response: +/-0.5dB 10Hz to 40kHz
- Crosstalk: <-105dBu @ 1kHz <-103 @ 10kHz
- THD+N @ 0dBu (1kHz): <0.0015%
- SNR: 100dB
- XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
- 1/4” Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)
D.I Inputs
- D.I Gain Range: 58 dB
- Maximum Input Level: +10dBu
- Input Impedance: 500k
- Frequency Response +/-0.5dB 10Hz to 20kHz
- THD+N @ 0dBu (1kHz): <0.1%
- SNR: 100dB
- 1/4” Jack: TIP (Hot) & SLEEVE (Shield)
ADC
- Digital Reference Level: 0dBFS = +10.5dBu
- Frequency Response: +/-0.5dB 10Hz to Fs/2
- Crosstalk: -125dBu @ 1kHz & 10kHz
- THD+N @ -1dBFS (1kHz): <0.001%
- Dynamic Range: 112.5dB A-Weighted
Line Outputs
- Maximum Output Level: 12dBu
- Digital Reference Level: 0dBFS = +12dBu
- Output Impedance: <50Ω
- Frequency Response: +/-0.5dB 10Hz to Fs/2
- Crosstalk: <-110dBu @ 1kHz
- THD+N @ -1dBFS (1kHz): <0.006%
- Dynamic Range: >117dB A-weighted
- 1/4” Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)
Dimensions
- Unit: 355mm (w) x 255mm (d) x 53mm (h)
