Description

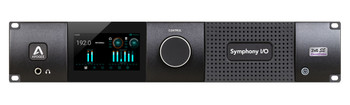

This model starts off as the Symphony Mk II 16X16 analog I/O (click here to find detailed information on that model) and has added another 16X16 module added to expand your device to 32X32 of analog input.
* This is the Thunderbolt connectivity of the Symphony Mk II 32x32 Analog I/O. Pro Tools HD model is found here.
Specifications
INPUTS (2x)
- Analog IN: 16 balanced inputs on 2 DSUB 25-pin connectors
- Coax IN: S/PDIF on 1 RCA connector
OUTPUTS (2x)
- Analog OUT: 16 balanced outputs on 2 DSUB 25-pin connectors
- Coax OUT: Supports SPDIF on 1 RCA connector
Connection:
- Thunderbolt cable (Sold separately)
Performance:
- 44.1kHz – 192kHz
- Latency: 1.35 ms with Logic Pro X (96 kHz / 32 buffer)
Computer:
- Thunderbolt-enabled Mac computer, including Mac Pro, MacBook Pro, Mac mini, iMac & MacBook Air
- Operating System: Mac OS 10.9.5 or greater
Control:
- Maestro app (included in software installer) and front panel touchscreen
Compatible Software:
- Logic Pro X
- Any Core Audio application on Mac
