Description
For recording of lead vocals and solo instruments in studio and on stage
The C414 XLII multi-pattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live-sound applications and permanent installations, all controls can easily be disabled for trouble-free use.
The C414 XLII version differs from the C414 XLS version in one major respect the capsule. The C414 XLII's slight presence boost and impressive spatial reproduction are both similar to the legendary AKG C12 microphone from 1953.
Features
- Sonic character of the famous AKG C12 delivers astounding sound quality for lead vocals and solo instruments
- Nine selectable polar patterns for the perfect setting for every application
- Three attenuation levels (-6/-12/-18dB) for close-up recording or high-output sources of up to 158dB SPL
- Three switchable different bass-cut filters to reduce wind noise, stage vibration or proximity effect
- Overload warning with audio peak hold LED to detect shortest audio peaks
Included Accessories
- H85 Universal Shock Mount
- PF80 Pop Filter

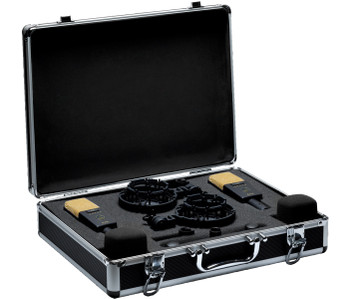

- Aluminum Carrying Case
Optional Accessories
- H50 Stereo Bar
- SA60 Stand Adaptor
- ST305 Table Stand
Specifications
General
Audio Frequency bandwidth 20 to 20000 Hz
Sensitivity 23 mV/Pa
Equivalent Noise Level 6 dB-A
Signal to Noise 88 dB-A
Preattunation Pad -6; -12; -18 dB
Bass Cut Filter 160; 80; 40 Hz
Electrical Impedance 200 Ohms
Recommended Load Impedance 2200 Ohms
Polar Patterns 9, including Omnidirectional, Wide Cardioid, Cardioid, Hyper Cardioid, Figure of eight
Powering Interface
Voltage 44 to 52 V
Current 4.5 mA
Audio Output
Type Balanced XLR
Gender Male
Contacts 3-pin
Design
Finish dark gray/gold
Dimensions / Weight
Length 38 mm
Width 50 mm
Height 160 mm
Net Weight 300 g
