Description
Universal 9V Pedalboard Power Supply 8 Outputs
The PWT 08 is a universal pedalboard power supply with huge 2,000 mA output capacity and 8 standard center negative outlets. Two outputs are switchable to 9, 12 or 18 volts, and with the included Y cable they can be combined to a single outlet for 21, 24, 30 or 36 volts maximum output. They are isolated from each other and the remaining outlets.
Featuring short circuit and overload protection, the PWT 08 is fully regulated to deliver constant voltage. The unit sports a power on LED, bi-color outlet status LEDs and comes with a set of DC cables and dedicated mains adapter.
The PWT 08 is the ideal choice if you have just one or two power hungry pedals or 9 volt effects that can be run on higher DC currents for more dynamics and headroom.
Specifications
Type: multiple power supply
Mains connector: wall wart
Input voltage: 100 - 250 V
Outputs: 8
Output connectors: 2.1 x 5.5 mm
Output voltage: 18, 9, 12 V
Max. output current: 2000 mA
Isolated outputs: yes
Polarity: center negative
Cord length: 25 - 50 cm
Indicators: Power, Fault
Controls: Output voltage selector
Width: 140 mm
Depth: 80 mm
Height: 32 mm
Weight: 0.3 kg

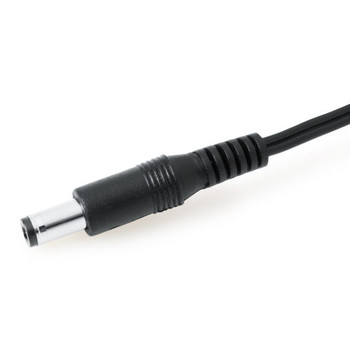

Features: 8 x DC cable, 1 x merge cable
