Description

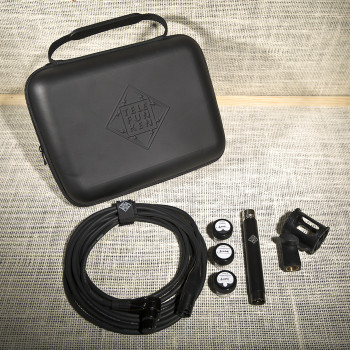

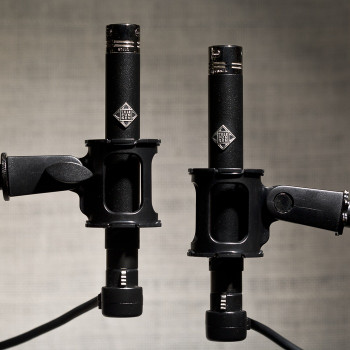

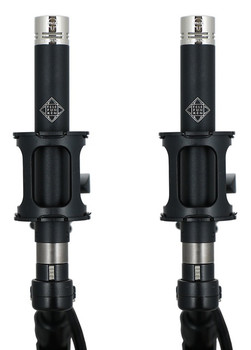

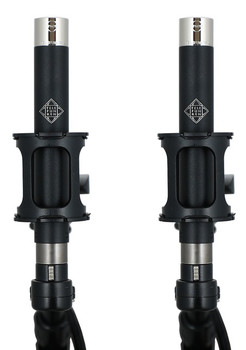

The M60 FET MASTER STEREO SET comes with a matched set of M60 FET microphones with interchangeable TK60 cardioid, TK61 omni-directional and TK62 hypercardioid capsules.

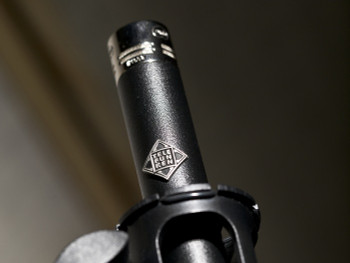

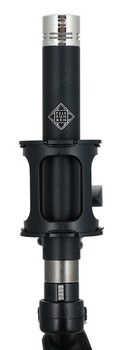

M60 FET Microphone
With over a year and half of development and beta testing with top recording engineers, the newly designed M60 FET (Field Effect Transistor) small diaphragm microphone is TELEFUNKEN Elektroakustik’s first non-vacuum tube, FET-based solid-state condenser microphone.
Utilizing a unique proprietary circuit topology, this re-interpretation of the classic FET mic amplifier produces an exceptional transient response and SPL handling capabilities. Carefully selected and tested components are hand-plugged into gold-plated circuit board traces to provide an ultra-clean true Class A discrete amplifier with a frequency response of +/- 2dB from 20Hz to 50KHz.
The output is matched with a custom American-made transformer that offers an especially low self-noise and a typical THD+N of 0.015% or better, making it ideal for critical recording applications.

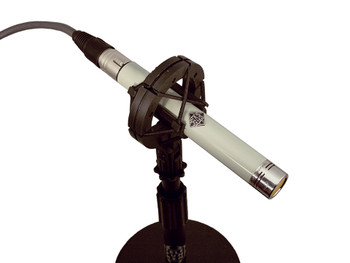

Designed to utilize the same interchangeable TK6X capsule systems as the TEC Award-winning ELA M 260 small diaphragm tube microphone,the M60 FET is an excellent tool for both acoustic and percussive sources.
TK60 Cardioid Capsule
The TELEFUNKEN TK60 is a small diaphragm cardioid capsule used with the ELA M 260 tube microphone and the M60 FET microphone. Featuring a 6-micron gold-sputtered membrane measuring 15mm in diameter, the TK60 has a surprisingly full low end for a small diaphragm capsule, and offers a quick and accurate transient response. These small diaphragm capsules are tested to a strict ±1dB sensitivity tolerance. The frequency response is flat from 150 Hz to 7 kHz, with a smooth, airy presence peak at 8 kHz making it ideal for drum overheads, acoustic guitar, and other acoustic instruments.
TK61 Omni-Directional Capsule
The TELEFUNKEN TK61 is a small diaphragm omnidirectional capsule used with the ELA M 260 tube microphone and the M60 FET microphone. Featuring a 6-micron gold-sputtered membrane measuring 15mm in diameter, the TK61 offers a large, open sound perfect for capturing the subtle nuances and space of your recording environment. The frequency response is flat from 20 Hz to 5 kHz, with a smooth, airy presence peak at 8 kHz. These small diaphragm capsules are tested to a strict ±1dB sensitivity tolerance. When used with the diffuse field spheres in the ELA M 260 Tri-Mono system, the TK61 omnidirectional capsule captures the ambience and vibe of your room to breathe life into any recording.
TK62 Hypercardioid Capsule
The TELEFUNKEN TK62 is a small diaphragm hyper-cardioid capsule used with the ELA M 260 tube microphone and the M60 FET microphone. Featuring a 6-micron gold-sputtered membrane measuring 15mm in diameter, the TK62 provides a wide cardioid pattern flat in response from 150 Hz to 3 kHz, with a dip at 6 kHz and a smooth, airy presence peak at 8 kHz. These small diaphragm capsules are tested to a strict ±1dB sensitivity tolerance. This tightened polar pattern is great for use on cymbals, percussion, and as a stereo pair for live performance recording, as used in the ELA M 260 Field Set.
