Description
MX405
Microflex® 5-Inch Modular Gooseneck Microphone
The MX405 is a gooseneck microphone with a Bi-Color LED or red light ring status display. It has a 12.7 cm / 5 inch gooseneck and is suitable for boardrooms and other sites where aesthetics are important.
FEATURES
- Gooseneck length: 5 inch / 12.7 cm
- Low profile, aesthetic design
- Wide dynamic range and smooth frequency response
- RF filtering with CommShield™ technology
- Status indicator: Bi-Color LED at gooseneck bottom or red light ring on gooseneck top
- Capsule options: None, Cardioid, Supercardioid
- Preamplifier Options
- MX400DP Desktop Base for MX405 and MX410 models
- MX890 Wireless Desktop Base for MX405 and MX410 models
- MX400SMP Surface Mount Preamp for MX405 and MX410 models

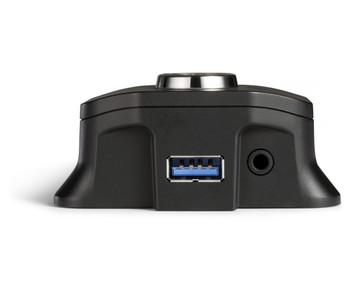

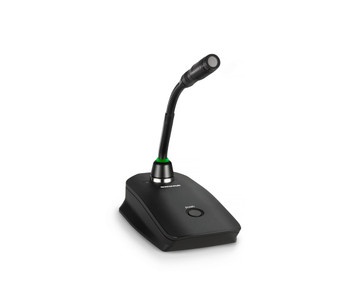

- MXW8 Wireless Desktop Base for MX405, MX410 and MX415 models
- ULXD8 Wireless Desktop Base for MX405, MX410 and MX415 models
ALSO IN THE BOX
- 1 - RK513WS Snap-fit Foam Windscreen
- 1 - MX400SMP Surface Mount Preamp
- 1 - 65A2190 Fastening Wing Nut
- 2 - 66A405 Rubber Isolation Rings
- 1 - 95A2529 5-Pin XLR Female Connector
Specifications
- Type Condenser (electret bias)
- Frequency Response 50–17000 Hz
- Polar Pattern (at 1 kHz)
- MX405/C, MX410/C: Cardioid
- MX405/S, MX410/S: Supercardioid
- Output Impedance
- EIA Rated at 150 Ω (170 Ω actual)
- Output Configuration Active Balanced
- Sensitivity (at 1 kHz , open circuit voltage)
- Cardioid: –35 dBV/Pa (18 mV)
- Supercardioid: –34 dBV/Pa (21 mV)
- 1 Pascal=94 dB SPL
- Maximum SPL (1 kHz at 1% THD, 1 kW load)
- Cardioid: 121 dB
- Supercardioid: 120 dB
- Equivalent Output Noise (A-weighted)
- Cardioid: 28 dB SPL
- Supercardioid: 27 dB SPL
- Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz)
- Cardioid: 66 dB
- Supercardioid: 68 dB
- Dynamic Range (1 kΩ load at 1 kHz) 93 dB
- Common Mode Rejection (10 Hz to 100 kHz) 45 dB minimum
- Preamplifier Output Clipping Level (1% THD) -8 dBV (0.4 V)
- Polarity
- 3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.
- 5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector.
- Weight
- MX405: 0.054 kg (0.119 lbs)
- MX410: 0.068 kg (0.150 lbs)
- MX400DP: 0.516 kg (1.138 lbs)
- MX400SMP (w/ Kit): 0.125 kg (0.275 lbs)
- Logic Connections
- LED IN: Active low (≤1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.
- LOGIC OUT: Active low (≤1.0V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 50V (up to 50V through 3kΩ).
- Mute Switch Attenuation -50 dB minimum
- Cable
- MX400DP: 6.1 m (20 ft) attached cable with shielded audio pair terminated at a 3-pin male XLR and three unterminated conductors for logic control
- Environmental Conditions
- Operating Temperature: -18–57 °C (0–135 °F)
- Storage Temperature: -29–74 °C (-20–165 °F)
- Relative Humidity: 0–95%
- Power Requirements
- 48–52 Vdc phantom, 8.0 mA
