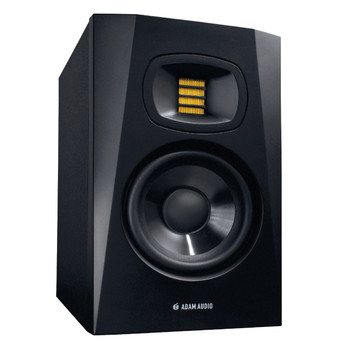

ADAM Audio T7V Nearfield Monitor

(1 review) Write a Review
SKU:
T7V
UPC:
4260113133712
Weight:
20.00 LBS
Shipping:
Calculated at Checkout
Availability:
Usually ships within 24 hours.
  • ADAM Audio T7V Nearfield Monitor
  • ADAM Audio T7V Nearfield Monitor
  • ADAM Audio T7V Nearfield Monitor
$249.99

Description

ADAM T7V

The T7V is a two-way studio monitor designed for vertical use in a nearfield application.

The T7V features a 7” woofer that provides bass extension down to 39 Hz, while the U-ART tweeter’s diaphragm provides pristine and extended high-frequency response up to 25 kHz – virtually unheard of in monitors in this price range. The U-ART tweeter is fitted to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series studio monitors. The waveguide’s highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.

On the rear side of the T7V’s beveled cabinet, a rear-firing bass reflex port joins a sturdy metal backplate that’s home to the analog input connections. The U-ART tweeter is powered by a 20 W Class-D amp, while a 50 W Class-D amp serves the woofer. These new powerhouses yield an impressive maximum of 110 dB SPL per pair.

The wide frequency response, high dynamic range, excellent transient response, wide sweet spot and small footprints make the T7V perfectly suited for use in small control rooms for music production, video post-production and broadcast production – a great fit for the modest budgets that many facilities need to work with.

The ADAM Sub8 subwoofer is the perfect match to complement the T7V to extend the capabilities of monitoring in the bottom end.

Features

  • U-ART 1.9” Accelerated Ribbon Tweeter
    • Allows longer operation with fewer signs of fatigue
    • Their breakup is prevented by the folded diaphragms, distortions are effectively reduced to a minimum
    • Advanced dynamic range due to acoustically effective diaphragm surface that is 2.5 times bigger (compared to a classic tweeter according to the piston principle)
  • The air velocity ratio of 4:1 during the sound generation by folded U-ART membrane
    • Direct, fast response in the high-range even with complex transients
  • HPS waveguide from the S Series
    • Makes dispersion more consistent and imaging more stable over a wider area
    • Reduction of early reflections on the surfaces of, e.g. mixing consoles, desks, etc.
  • Lightweight polypropylene construction of the woofer
    • Excellent transient response even at high sound levels without breakup of the diaphragm
  • Vertical 2-way system with 7” woofer
    • High resolution of the stereo image
  • Spacious rear-firing bass reflex port
    • Bass reproduction with very low compression
  • Linear frequency response of 39 Hz to 25 kHz
    • Unbiased reproduction in a wide frequency band
  • Maximum peak sound pressure per pair in 1 m ≥ 110 dB
    • Powerful, compression-free sound reproduction even at very high sound levels
  • DSP-powered crossover design
    • Smooth frequency response without interferences between the drivers in the critical mid-range
  • Simple room acoustic adjustments via high- and low-shelf filters
    • Allows optimal adaptation to acoustically difficult listening environments or individual preferences
  • Analog inputs over XLR and RCA
    • Optimized for balanced and unbalanced line signals
  • Acoustically optimized cabinet geometry
    • Reduction of unwanted reflections on the cabinets
  • Compact cabinet dimensions
    • Fits every desktop
  • 2 years warranty with optional extension to 3 years with the registration of the product
    • Full repair service if required for 5 years

ADAM T Series

The T Series is ADAM Audio’s new range of affordable, professional 2-way powered studio monitors, offering extremely high performance and is comprised of two models: the T5V features a 5” woofer and the T7V uses a 7” woofer. Both models use the same U-ART high-frequency driver (Unique Accelerated Ribbon Tweeter); feature a beveled cabinet design, rear-firing bass reflex port, built-in DSP-controlled driver crossovers and equalization, and multi-way analog connections; and are compatible with the ADAM Sub7 and Sub8 subwoofers.

The monitors’ small dimensions belie their outstanding performance: Their wide frequency response, high dynamic range, excellent transient response, wide sweet spot and small footprints make both monitors perfectly suited for use in small control rooms for music production, video post-production and radio broadcast. And because of its attractive price point the T Series monitors are a great fit for the modest budgets that many facilities need to work with.

View AllClose

Specifications

WOOFER

Number: 1
Basket: Ø 7" (178 mm)
Cone Material: Polypropylene

TWEETER

Number: 1
Type: U-ART
Diaphragm Area: 4 inch² (2420 mm²)
Equiv. Diaphragm: Ø 1.9" (48 mm)
Velocity Transform Ratio: 4:1
Diaphragm Weight: 0.17 g
Waveguide: HPS

BUILT-IN AMPLIFIERS

Number: 2
Woofer: 1
Type: PWM
Amp. Power: RMS 50 W
Tweeter: 1
Type: PWM
Amp. Power: RMS 20 W

CONTROL OPTIONS

Input Sensitivity: Switchable +4 dBu / -10 dBV
Gain: Yes
High-Shelf: - 2 dB, 0 dB, +2 dB
Low-Shelf: - 2 dB, 0 dB, +2 dB

INPUT CONNECTORS

Analog: XLR, RCA
Input Impedance: 10 kOhm / 20 kOhm

GENERAL DATA

Panel: Rear
Frequency Response: 39 Hz - 25 kHz
THD > 80 Hz: 0.5 %
Max. SPL per pair at 1 m: ≥110 dB
Crossover Frequency: 2.6 kHz
Max. Power Consumption: 132 W
Weight: 15.7 lbs (7.1 kg)
Height x Width x Depth: 13.7" x 8.3" x 11.5” ( 347 mm x 210 mm x 293 mm)
Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
Delivery Contents: Power cord, Quick Start Guide

View AllClose

1 Review

  • 4
    So far so good

    Posted by Declan (Vancouver Client) on June 24, 2018

    The speakers are great, however there is a hiss that both are giving off, even when not connected to my audio interface... its been happening since day 1.
